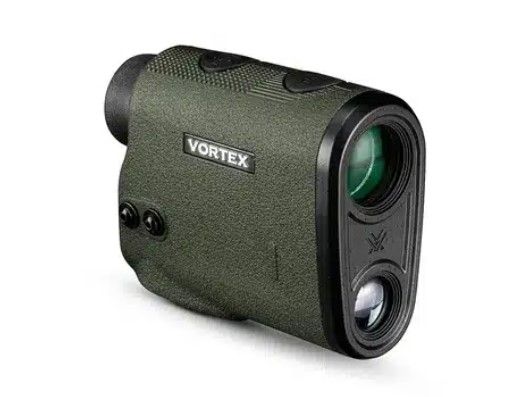

When your hunt means ranging big game at 1,000 yards and beyond, your laser rangefinder needs the horsepower to go long and the toughness to stand up to the field. The Diamondback® HD 2000 laser rangefinder gives hunters 2,000 yards max range, and 1,400 yards on game. 7x magnification helps you see farther, and an HD optical system means you can pick apart the landscape and stay pinpointed on your quarry. The red OLED display stays clear in low light, and to match any hunting environment, the Diamondback® HD 2000 has two target modes (Normal and Last), two ranging modes (HCD and LOS), and is tripod adaptable.
| Magnification | 7x |
|---|---|
| Objective Lens Diameter | 24 mm |
| Reticle | HCD Corrected Shoot-To Range |
| Range Reflective (yards) | 2000 yds |
| Range Tree (yards) | 1800 yds |
| Range Deer (yards) | 1400 yds |
| Max Angle Reading | + / - 60 degrees |
| Linear Field of View | 335 feet/1000 yards |
| Angular Field of View | 6.4 degrees |
| Eye Relief | 16 mm |
| Length | 4.1 inches |
| Width | 1.8 inches |
| Weight | 7.6 oz |
| HD Optical System | Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration, and provide outstanding color fidelity, edge-to-edge sharpness, and light transmission. |
|---|---|
| XR™ Lens Coatings | Premium anti-reflective coatings on all air-to-glass surfaces provide superior light transmission for exceptional clarity and low-light performance. |
| ArmorTek® | Ultra-hard exterior lens coatings defend against scratches, oil, and dirt.. |
| Rubber Armor | Provides a secure, non-slip grip, and durable external protection. |
| Waterproof | Designed to withstand harsh weather conditions.. |
| Shockproof | Designed to withstand the highest levels of impact. |
| Tripod Adaptable | Compatible with a tripod adapter, allowing use on a tripod or car window mount. |

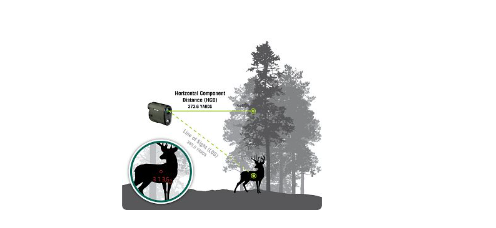

HCD CORRECTED SHOOT-TO RANGE
The Diamondback HD 2000 uses HCD (Horizontal Component Distance) angle-compensated ranging technology to give bow and rifle shooters the critical distance data needed to make accurate shots.
